TPU PETG Flatbed Smart 3D Printer 200200300mm STL High Speed

Name: TPU PETG Flatbed Smart 3D Printer 200200300mm STL High Speed
Brand: JCVISION
Price: 1 USD

Buy cheap TPU PETG Flatbed Smart 3D Printer 200*200*300mm STL High Speed product

Brand Name : JCVISION

Model Number : JC-SP168

Certification : CE/CCC/FCC/ROHS/ISO9001

Place of Origin : SHENZHEN, CHINA

MOQ : 1unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000 Unit/Units per Month

Delivery Time : 5-8 work days

Packaging Details : wooden box

Production Capacity : 5000 units/month

Dimension(L*W*H) : 415*366*540mm

Voltage : 110-240V

Forming size : 200*200*300mm

Printing Size : 200*200*300 mm

Forming Precision : ±0.1-0.3 mm

Nozzle Diameter : 0.4 mm(Optional)

File Format : STL/Gcode/dae/amf/bmp/jpg

Automatic Grade : Automatic

Plate Type : Flatbed Printer

Filament Diameter : 1.75 mm

Layer Thickness : 0.05-0.3 mm

Precision XY axis : 0.0128 mm Z axis:0.0025 mm

Supporting Material : PLA/TPU/PETG

Contact Now

JCVISION New design high precision 3D printing size 200*200*300 mm large 3d printer

Product Features:

1. Linear guideway: low firction and more accuracy.

2. With LED light: feel free to check the print process.

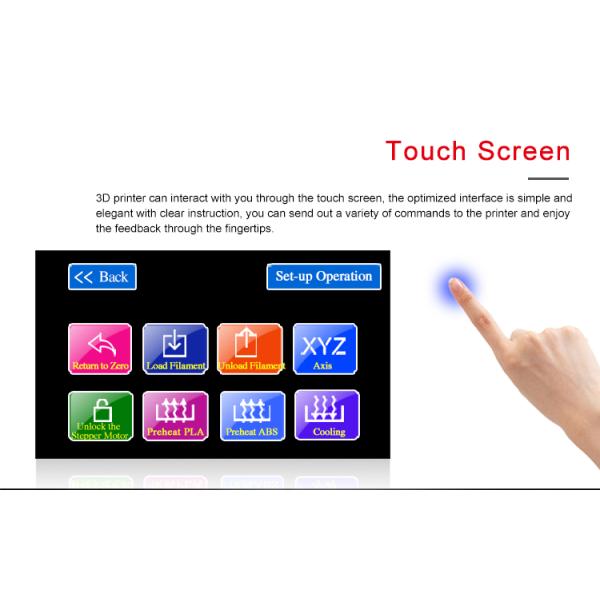

3. 4.3''Full-color touch screen: as convenient as smart phone operation.

4. Magnetic removable extruder, easier and more efficient to change the nozzle.

5. Magnetic removable print platform: Easier for model removal without damage.

6. Power failure protection: Resume 3D print from where the last print stops due to power outage.

7. Dual motor feeding system,make printing more precise, excellent function for complicated model printing.

8. Filament run-out reminder: A friendly reminder for filament changing due to filament shortage or breakage.

9. Automatic bed leveling & automatic lifting filament tray: intelligent control of bed levelling and more time-saving for filament feeding.

Specification:

Advantages	Mixed-color/Dual-color/Layered color/Single color supported /single nozzle output two color mixing/Hot bed/Smart leveling
Printing size	200200300mm(480mm)
Nozzle number	Dual feed single nozzle
Layer thickness	0.05-0.30mm
Forming precision	±0.1-0.3mm
Nozzle diameter	0.4mm
Printing material	PLA/TPU/PHA
Filament diameter	1.75mm
Slicing software	CURA-Chinese/English
Support File Format	stl;Gcode;obj;dae;amf;bmp;jpg
XY axis precision	0.0128mm
Z axis precision	0.0025mm
Hot bed temperature	0-120℃
Nozzle temperature	0-250℃
SD card offline printing	Support U Disk printing
LCD	3.5 inch color touch screen
Working voltage	24V
Input voltage	220V/110V
Average power/maximum power	200W/320W
Product size	360360534mm
Packing size	505445660mm
Machine weight	22kg
Packing weight	31kg
Environmental requirement	15-35℃,Humidity20-50%
Quality certification	CE,FCC,ROHS

TPU PETG Flatbed Smart 3D Printer 200*200*300mm STL High Speed
